F-PVS31 Fusion

THIS ITEM IS ON ORDER WITH AN EXTEDNED LEAD TIME OF 4-6 WEEKS

The F-PVS31 Fusion Binocular is a combined thermal and night vision device. It allows the user to fuse the image from a thermal clip-on, such as a Jerry-C or ECOTI, into a traditional binocular night vision device’s point of view.

The advantages of such a device are clear, as it integrates the equivalent of a COTI directly into the housing. This provides reduced perceived weight and simplified operation since all functions are contained within a single unit.

The typical controls of a high-end binocular are present, including manual gain adjustment, IPD stops, and a metal dovetail compatible with the included helmet mount.

Powered by an included battery pack, the device features a 640×512 @ 12 μm thermal imaging sensor with a 1024×768 px display, which can also be used standalone, without night vision enabled.

The F-PVS31 Fusion offers the follwing Componenents:

• Commercial-spec optics (compatible with all standard PVS-31 optics accessories)

• GEN 2+ white phosphor autogated tube with either 1600+ or 1800+ FOM

•  F-PVS31 Fusion Housing and accessories

Housing/Device Specs

Material: Reinforced Polymer

Tube Type: 18mm IIT (3 Wires Manual Gain)

Weight: 680g

Power Supply: CR123A

Runtime: 32h (Lithium batteries)

Field of View: 40º

Diopter: -2 to 6

Submersion and Dust Rating: IP67

Mount Style: Dovetail

Onboard IR Illuminator: No

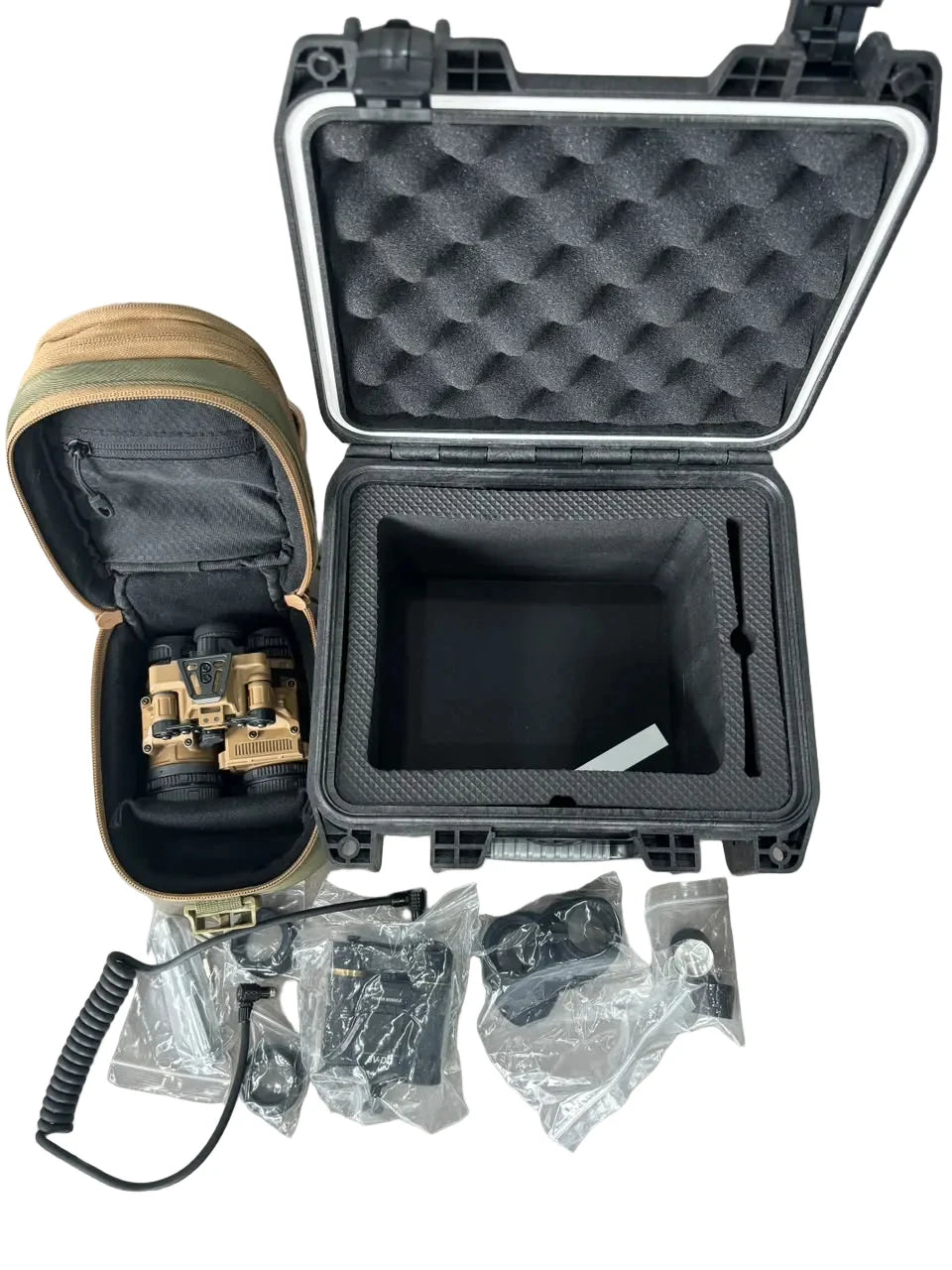

What is included in this product Purchase:

• 1x F-PVS13 Fusion Device
• 1x Battery pack with cable
• 2x Daylight Cover
• 1x Helmet Mount
• 2x Eyecups
• Soft Head Harness
• Hard Case
• NLI Warranty
• Cool Sticker
